Inconel 625 Nickel Alloy
Ntawv pov thawj: ISO9001: 2015
Alloy Qeb: Corrosion-Resistant Alloy
Substrate Puab: Axis Hlau / Sawb / Ncaj Bar
Alloy Series: Nickel-Chromium-Hlau Alloy
Kev Siv Ua Qauv: ASTM
Cov Cheeb Tsam Thov: Tsheb, Petrochemical, Kev lag luam, Aerospace, Zog
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Inconel alloy 625 yog lub siab-zog, xeb-resistant npib tsiboly-molybdenum-niobium alloy nrog oxidation tsis kam.
Alloy 625 muaj qhov ceev ntawm li 8.44 g / cmÃ, lub ntsiab lus melting ntawm 1290 degree, kuj tsis muaj hluav taws xob tsawg. Cov kev ua haujlwm ntsuas kub yog los ntawm cryogenic txog 1800 degree f (982 degree).

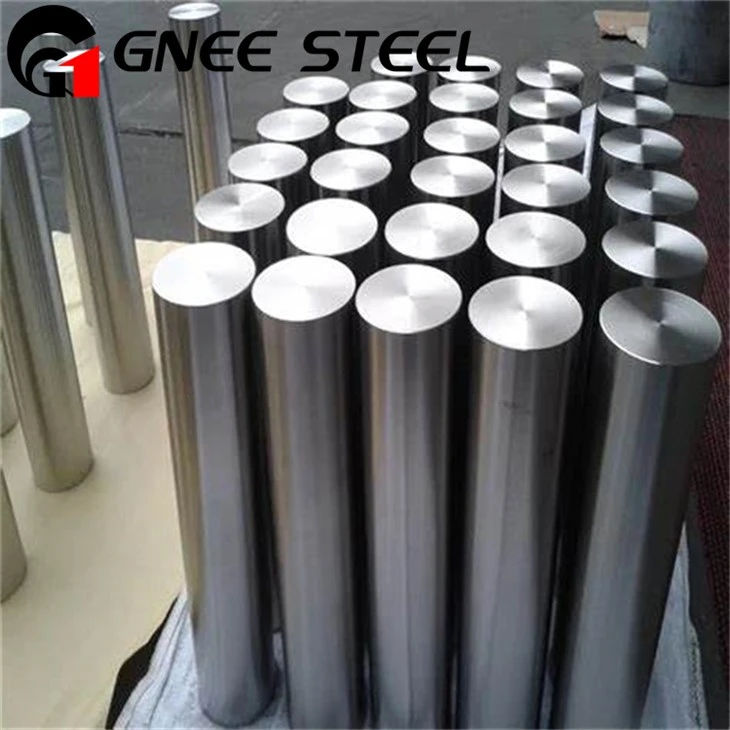

Inconel alloy 625 muaj nyob rau hauv cov hlab, cov kav dej, ib daim hlau, cov kab hlau, tsis quav ntsej, cov xaim hexagonal, thiab xaim. Cov khoom no muaj nyob rau ntau qhov ntau thiab tsawg.
Nickel Alloy 625 tsis yog N06625 kev siv
1. AERPACE kev lag luam: Aircraft duc lub tshuab, cav nqus cov tshuab, thiab cov foob pob hluav taws xob cav.
2. Tshuaj Kev Lag Luam: Khoom lag luam rau kev tuav tshuaj thiab ua cov tshuaj tua kab, xws li cov tshuaj cog cov tshuaj tiv thaiv cov tshuaj tiv thaiv, cov hlab ntsha, thiab cov raj raj tshuab.
3. Marine engineering: kiv cua txuas, saftts, thiab lwm yam kev siv hauv dej hiav txwv.
Inconel® 625 Cov Lus Qhia Tshwj Xeeb
Tshuaj Muaj Tshuaj
| Lub ntsiab | Min% | Max% |
|---|---|---|
| C | – | 0.10 |
| Mn | – | 0.50 |
| Si | – | 0.50 |
| P | – | 0.015 |
| S | – | 0.015 |
| Cr | 20.00 | 23.00 |
| Co las | – | 1.00 |
| Mo | 8.00 | 10.00 |
| Zaum fe | – | 5.00 |
| Al | – | 0.40 |
| Ti | – | 0.40 |
| Ni | 58.00 | – |
| Nb / cb | 3.15 | 4.15 |
| Ta | – | 0.05 |
| CU | – | 0.5 |
Cov Khoom Siv
Cov cuab yeej siv cov khoom siv tsis raug ntawm inconel® 625:
| ceev | Phaus / cubic nti |
0.305 |
| g / cm3 |
8.44 |
|
| Melting taw tes ntau |
Degree F |
2350-2460 |
|
tiv kis |
1290-1350 |
|
| Cov cua sov tshwj xeeb | Btu / LB degree F (Joule / Kg degree) |
|
|
{{0 {}} degree f ({-18 degree) |
0.096 (402) |
|
|
70 Degree F (21 Qib) |
0.098 (410) |
|
|
200 degree f (93 degree) |
0.102 (427) |
|
|
400 degree f (204 degree) |
0.109 (456) |
|
|
600 degree f (316 degree) |
0.115 (481) |
|
|
800 degree f (427 degree) |
0.122 (511) |
|
|
1000 degree f (538 degree) |
0.128 (536) |
|
|
1200 degree f (649 degree) |
0.135 (565) |
|
|
1400 degree F (760 degree) |
0.141 (590) |
|
|
1600 degree f (871 degree) |
0.148 (620) |
|
|
1800 degree f (982 degree) |
0.154 (645) |
|
|
2000 degree f (1093 degree) |
0.160 (670) |
|
| 200 oerstedt permeability (15.9 ka / m) |
1.0006 |
|
| Curie Kub |
Degree F |
<-320 |
|
<-320 |
-196 |
Cov specifications ntawm incmel 625 suav nrog cov hauv qab no:
| Xuas Thiab Rods | Zam txim | Daim hlau, ntawv thiab strips | Seamless Yeeb Nkab | Welded Yeeb Nkab | Cov yeeb nkab fittings |
|
ASTM B 446 / ASME SB 446 |
ASTM B 564 / ASME SB 564 |
ASTM B 443 / ASTM SB 443 |
ASTM B 444 / ASME SB 444 |
ASTM B 704 / ASME SB 704, ASTM B 705 / ASME SB 705 |
ASTM B 366 / ASME SB 366 |
Inconel 625 Nickel Alloy - OMS 5666
Vim li cas xaiv Gnee
Cov ntaub ntawv tseem ceeb yog: Hastelloy, Monel, Nickel Alloy, Titanium Alloy, Incolel, itc. Peb tseem tuaj yeem muab cov kev pabcuam customized rau koj qhov project. Txhua yam khoom hauv Tshuag tuaj yeem xa tawm tam sim thaum cov nyiaj them, thiab cov khoom muaj ntau dua.
Thov hu rau peb rau nqe lus!ss@gneesteel.com
Cov Khoom Kuaj
Kev Tshaj Lij Nickel-Raws Li Tag Nrho Cov Yeeb Nkab Ntaus Npe-GNee
Gnee ntim thiab xa khoom
Cov FAQ
Q: Koj lub tuam txhab cov khoom lag luam tseem ceeb yog dab tsi?
A: Peb cov khoom tseem ceeb yog stainless hlau, carbon hlau, cov hlau galvanized, cov khoom siv txhuas, thiab lwm yam.
Q: Koj tswj tau zoo li cas?
A: MILL TESTMENTATION yog muab cov zaub mov xa tuaj, tshuaj xyuas thib peb yog muaj. Thiab peb kuj tau txais ISO, SGS tau txheeb xyuas qhov tseeb.
Q.What yog qhov sib txawv ntawm inconel 625 thiab 718?
A: Alloy 625 feem ntau yog npib tsib xee npe, thaum Alloy 718 yog Nickel + Cobalt (NI + CO) -BASED. Alloy 625 muaj qib siab ntawm chromium thiab molybdenum, ua rau nws muaj ntau corrosion resistant.
Cim npe nrov: Inconel 625 Nickel Alloy, Suav Incoy 625 Nickel Alloy Cov Khoom Siv
